15mm 1/2" Socket

Select Shimano MTB hubs use a 15 mm hex on the axle's end for service work. Specifically, certain freehub-body engagement nuts and a few cup-and-cone adjustment fittings on older Shimano XT and SLX hubs accept a 15 mm hex tip. A standard 15 mm hex key (an L-shaped Allen wrench) works for some of these; but where the access geometry calls for a socket on a ratchet (the most common service position for a hub-axle service), the 192/2HX is the right tool.

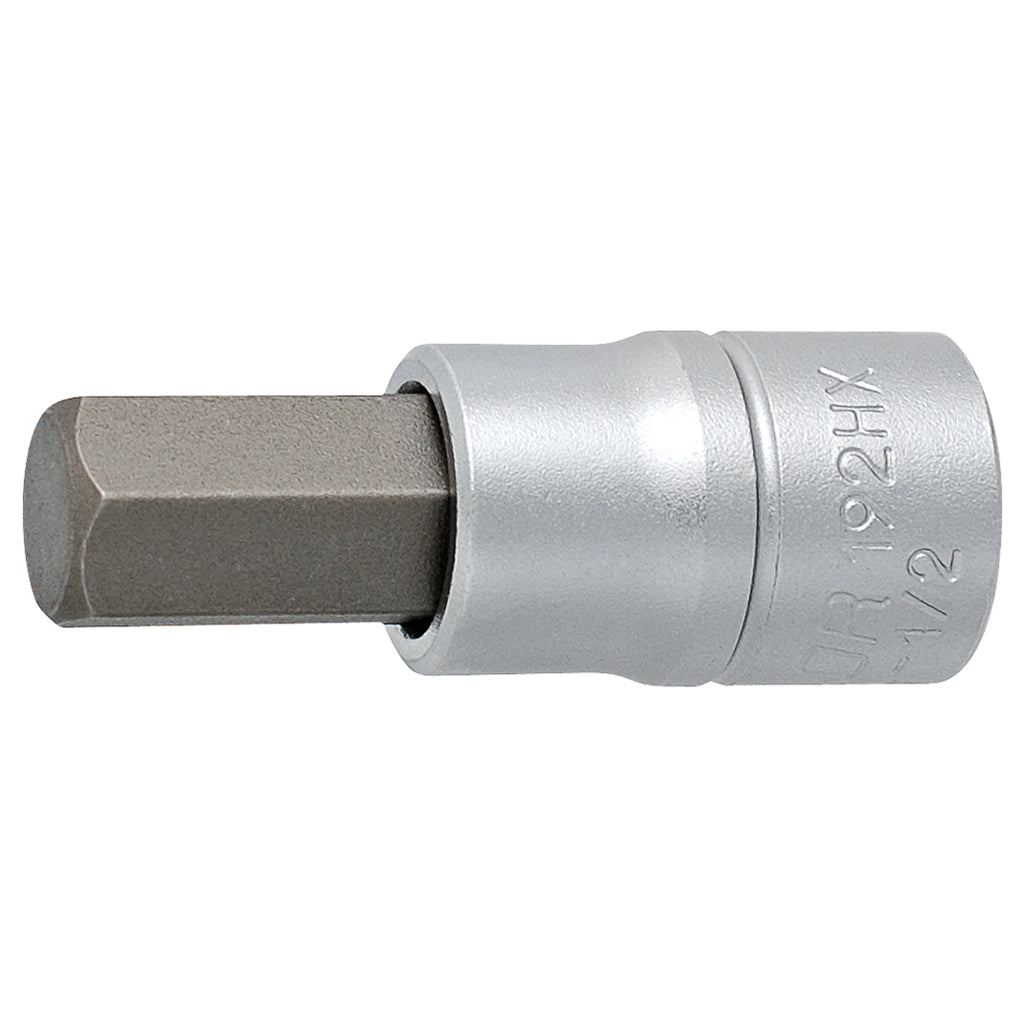

The 192/2HX is a 15 mm hex socket on a 1/2" square drive. The 1/2" drive accepts our 1/2" ratchet or any other 1/2" drive ratchet or torque wrench. The hex working profile is dimensioned to ISO standard, with the bit profile sized for a clean engagement against the hub's 15 mm hex without play.

When you'll need it

• Servicing certain Shimano XT, SLX, and Deore MTB hub freehub bodies (refer to the specific hub's service manual for confirmation)
• Removing or installing a Shimano cup-and-cone hub's cone-side adjustment cap on hubs that use a 15 mm hex
• Any service work where the access angle calls for a socket on a ratchet rather than an L-key; typically when the hub is in a wheel and the wheel is in the bike

Always check the specific hub's service manual to confirm the 15 mm hex applies before reaching for the tool. Newer Shimano hubs have moved away from this engagement; older ones still use it.

What it isn't

It isn't a 15 mm hex bit for a 1/4" or 3/8" ratchet (those are the 1/4" drive hex bit set 187/2HX and the 3/8" hex bit socket lines). The 192/2HX is specifically the 1/2" drive size for the hub-service use case.

It isn't a substitute for a 15 mm pedal wrench. Pedal wrenches use a different engagement geometry (the pedal's wrench flat, not a hex) and the 192/2HX won't fit a standard pedal flat.

Specs

• 15 mm hex working profile
• 1/2" square drive
• Drop-forged chrome-vanadium, hardened and tempered
• Chrome plated
• Article number: 192/2HX

Built in Zreče, Slovenia

Unior has been forging hand tools in Zreče since 1919, and is the official technical partner of multiple World Tour and downhill teams. The 192/2HX is part of Unior's hex-socket-bit family, sized for the bicycle workshop's specific engagement geometries. Same drop-forged chrome-vanadium and same hardening process as the rest of the socket line.

Pro tip from our mechanics

Always check the Shimano service manual for the hub model before assuming the 15 mm hex applies. Shimano has changed engagement standards across hub generations, and the wrong tool on a stubborn hub axle does damage faster than the right tool releases the axle. Our workshop hand tools guide covers socket selection and the rest of the workshop hand-tool layer: Workshop hand tools every bike shop needs →
