Sinter Smart Bedding Machine

A pro-level workshop machine you can buy here at retail like any other tool; dealers looking at multiple units or wholesale pricing should get in touch.

The Sinter Smart Bedding Machine is the friction-material brand's workshop solution to a familiar problem: parking-lot pad bedding is inconsistent, depends on the technician's patience, and produces pads that often need a hundred miles in the field to fully season. The Smart Bedding Machine moves the bedding cycle off the parking lot and onto a bench, where a programmable roller spins the wheel at a controlled cadence while the technician applies the brake at the lever. The result is a pad that's properly seasoned the moment it leaves the workshop; every install, every time.

What it does

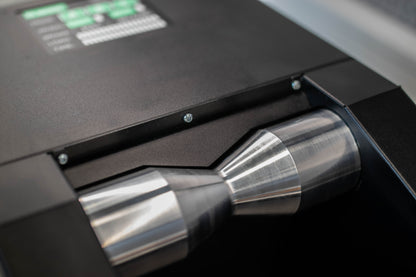

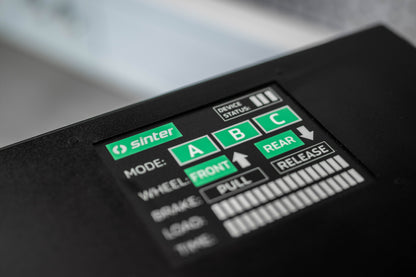

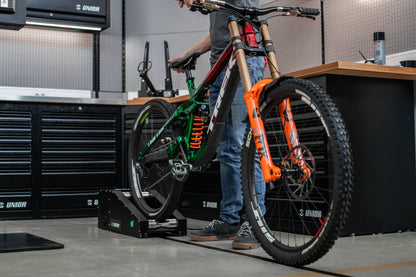

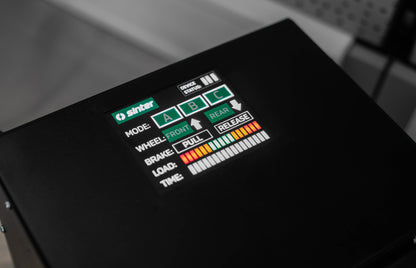

The machine accepts a wheel (front or rear) on V-shape dual-drive aluminum rollers that fit tire widths from 1.0 inch through 3.0 inch and wheel sizes from 20 inch through 29 inch. With a mode selected from the control panel, the rollers spin the wheel to a generated speed of about 24 km/h (tire-dependent), and the technician runs the bedding-in procedure at the lever. A touchless foot sensor lets the technician change rotation direction between front-wheel and rear-wheel bedding without taking hands off the lever. A built-in stop/start function trims the cycle time on simpler bedding routines.

The machine ships with profile presets for common pad-and-rotor combinations and accepts firmware updates over the integrated USB port. Sinter publishes new profiles as the brake catalog expands; the machine that ships today supports the same Maven, Code, MT5/MT7, and Dura-Ace K-type fitments that the rest of this brake-pads collection covers.

Why it pays for itself

Workshop time is the most expensive line item in a bike-build operation. A parking-lot bedding cycle is fifteen to twenty minutes per bike, weather-dependent, and produces pads that often need post-install field correction. The Smart Bedding Machine reduces the bedding cycle to a few minutes per wheel, runs in any weather, and produces pads that perform 20% better than parking-lot-bedded pads (per Sinter's own measurement against a controlled test rotor). Across a fleet build or a busy summer service queue, the time saving compounds quickly.

The other consequence is consistency. Hand-bedded pads vary in performance from technician to technician and from session to session; machine-bedded pads are identical session after session, which means the customer's experience of “the brake feels right immediately” is reproducible across every bike that leaves the shop.

Specifications

• Generated speed: 24 km/h (tire-dependent)
• Roller design: V-shape, dual-drive, aluminum; accepts all tire types
• Wheel sizes: 20 inch through 29 inch
• Tire widths: 1.0 inch through 3.0 inch
• Power: 220 V or 110 V models available
• Direction change: touchless foot sensor or control panel button
• Firmware: USB port for Sinter firmware updates
• Dimensions: W 270 mm × H 250 mm × L 690 mm
• Weight: 22.8 kg

Who it's for

Bike-build assemblers, service workshops with consistent high pad-install volume, and any operation that does new-build deliveries where the customer expects the brake to feel right on the test ride. The machine is also useful for any workshop running e-bike service at scale: e-bikes have driven the cycling industry's average gross weight and braking-demand baseline upward, and properly bedded pads are now more critical to consistent braking performance than ever.

It's a dealer-level machine, but not a dealer-only one: add it to the cart like any other tool. For multiple units, wholesale pricing, or the firmware update schedule for the bike platforms your shop services, contact us.

Sinter, Ljubljana since 1969

The Smart Bedding Machine launched in 2023 and sits alongside the bicycle pad line in the Sinter catalog; both come from the same Ljubljana plant that has been making friction materials in Slovenia since 1969 and developed the first disc brake pads in the former Yugoslavia in 1972. The machine reflects the workshop-grade attention to brake-system consistency that the OE side of Sinter's business (Aprilia, KTM, and other motorcycle OEMs) demands. Unior has been forging hand tools in Zreče since 1919, and is the official technical partner of multiple World Tour and downhill teams. Euro Toolworks distributes both Slovenian brands in North America.

Pro tip from our mechanics

The Smart Bedding Machine pays for itself fastest at workshops with high pad-install volume and consistent build-quality expectations: e-bike service centers, fleet-rental operations, and bike-shop service queues that handle ten or more bedding cycles per week. For workshops with lower volume, the manual bedding-in procedure remains the right tool; it costs only the technician's time and produces correctly-bedded pads when followed carefully.

Whether the manual bedding sequence is enough or the machine is the right next purchase comes down to how much technician time it saves per week: Disc Brake Pad Bedding In Procedure → is the technique the machine automates.

FAQ

How much does the Sinter Smart Bedding Machine cost? The price on this page is the retail price: add the machine to the cart like any other tool. Dealers buying multiple units or looking for wholesale pricing should contact us.

What wheel sizes and tire widths fit the machine? The V-shape dual-drive aluminum rollers take 20- to 29-inch wheels and 1.0- to 3.0-inch tire widths, with any tire type, and the machine comes in 220 V or 110 V versions.

Which brakes does the machine have bedding profiles for? The factory preset library covers the usual pad and rotor pairings: SRAM Maven and Code, Magura MT5/MT7, and Shimano Dura-Ace K-type fitments, the same families as the Sinter pad range. Sinter publishes new profiles as the catalog grows, loaded over the machine's USB port.
